SD card replacement for printers with serial numbers 2/17/1/001 to 2/17/1/040

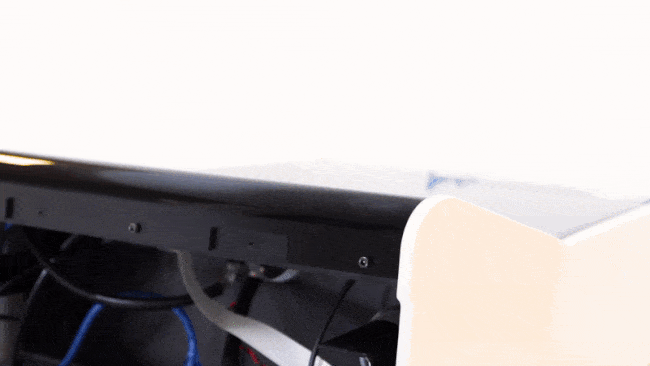

Start by following this guide to remove the bottom cover.
The SD card is sitting behind the front screen.

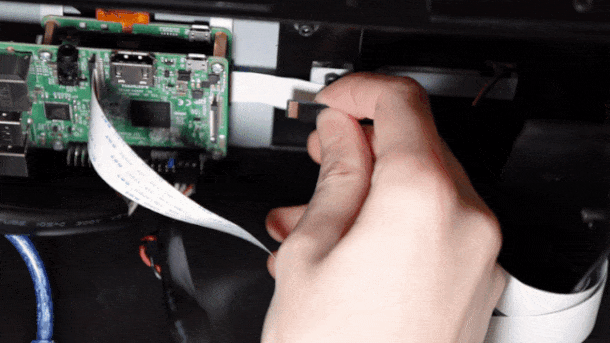

Open the black ribbon cable lock by pulling down on it and remove the cable.

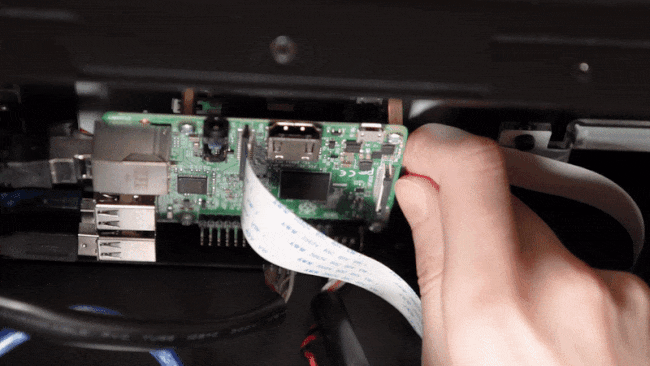

Pull the SD card out of the board.

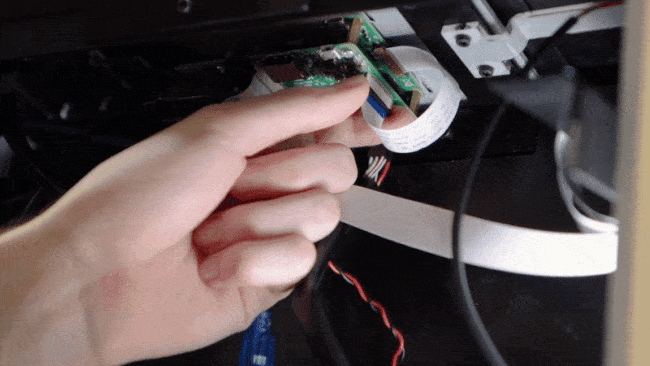

Place the new card into the board. Make sure its orientation is correct.

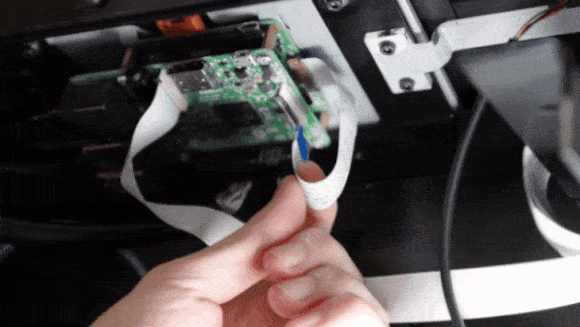

Gently push the ribbon cable into the socket and push the black lock to secure it in place.
Follow the previous guide to close the bottom of the printer.
